Kwipu — Ask your notes

From a note to the graph

Every relation knows where it came from.

Kwipu reads the frontmatter and the [[wikilinks]] you already write, and asks an LLM for the relations hidden in the text. Hover a relation to see the exact line it comes from.

knowledge_base/examples/Alice.md

relations in the graph

frontmatter attribute linked note extracted by the LLM (illustrative)

Notes, not strings

[[Bob]], [[Bob#Role]], [[People/Bob]] and a renamed note's aliases: all resolve to the same node. Homonyms in different folders stay apart.

Provenance on every edge

Structural relations keep the file, the frontmatter field, the line and a hash of the note, so an answer can always be traced back.

Six languages

Relation patterns for English, Italian, French, German, Spanish and Portuguese, chosen by the language of each line.

Three ways in

One knowledge graph, wherever you work.

The same index answers from a 3D web interface, a terminal next to your editor, or any AI client that speaks MCP.

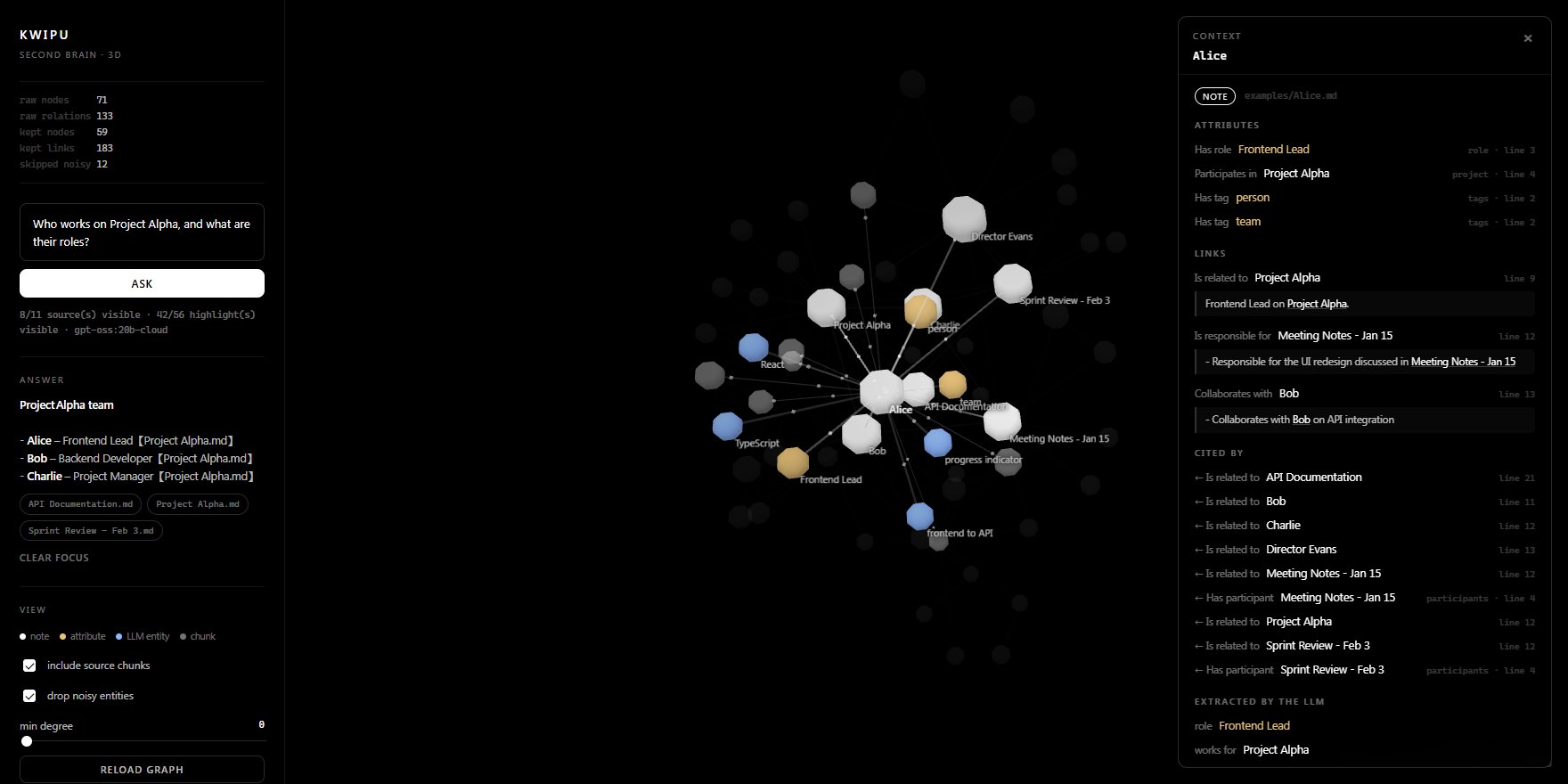

Kwipu web interface answering who works on Project Alpha, with the 3D graph focused on Alice and her context card

Ask a question, watch the cited nodes light up, then click any node for a context card: its attributes, links, backlinks and the line of the note each one comes from.

{
  "mcpServers": {
    "kwipu": {
      "command": "C:/path/to/Kwipu/.venv/Scripts/python.exe",
      "args": ["C:/path/to/Kwipu/kwipu_mcp_server.py"],
      "env": {
        "KWIPU_KNOWLEDGE_DIR": "C:/path/to/vault",
        "KWIPU_LLM_MODEL": "qwen2.5:7b",
        "KWIPU_EMBED_MODEL": "nomic-embed-text"
      }
    }
  }
}

Give any MCP client two tools: query_graph for an answer, and query_graph_detailed for the answer plus deduplicated citations.

Under the hood

Built to give answers you can check.

Grounded, cited answers

Answers are built from source chunks and return their citations, so every claim can be opened and verified.

Structure plus semantics

Wikilinks and frontmatter give a precise skeleton; an LLM adds the relations written in plain prose.

Hybrid retrieval

Vector similarity, BM25, temporal metadata and optional synonym expansion work together to find the right context.

Your formats

Markdown, plain text, PDF and Word documents, from an ordinary folder or an Obsidian vault. Your files are never rewritten.

Live, safe updates

A watcher picks up new and changed notes; storage generations are published atomically, so readers never see a half-written graph.

Local when you choose

Pick a local Ollama model and the whole pipeline, from indexing to answers, stays on your machine.

In practice

Questions your notes can finally answer.

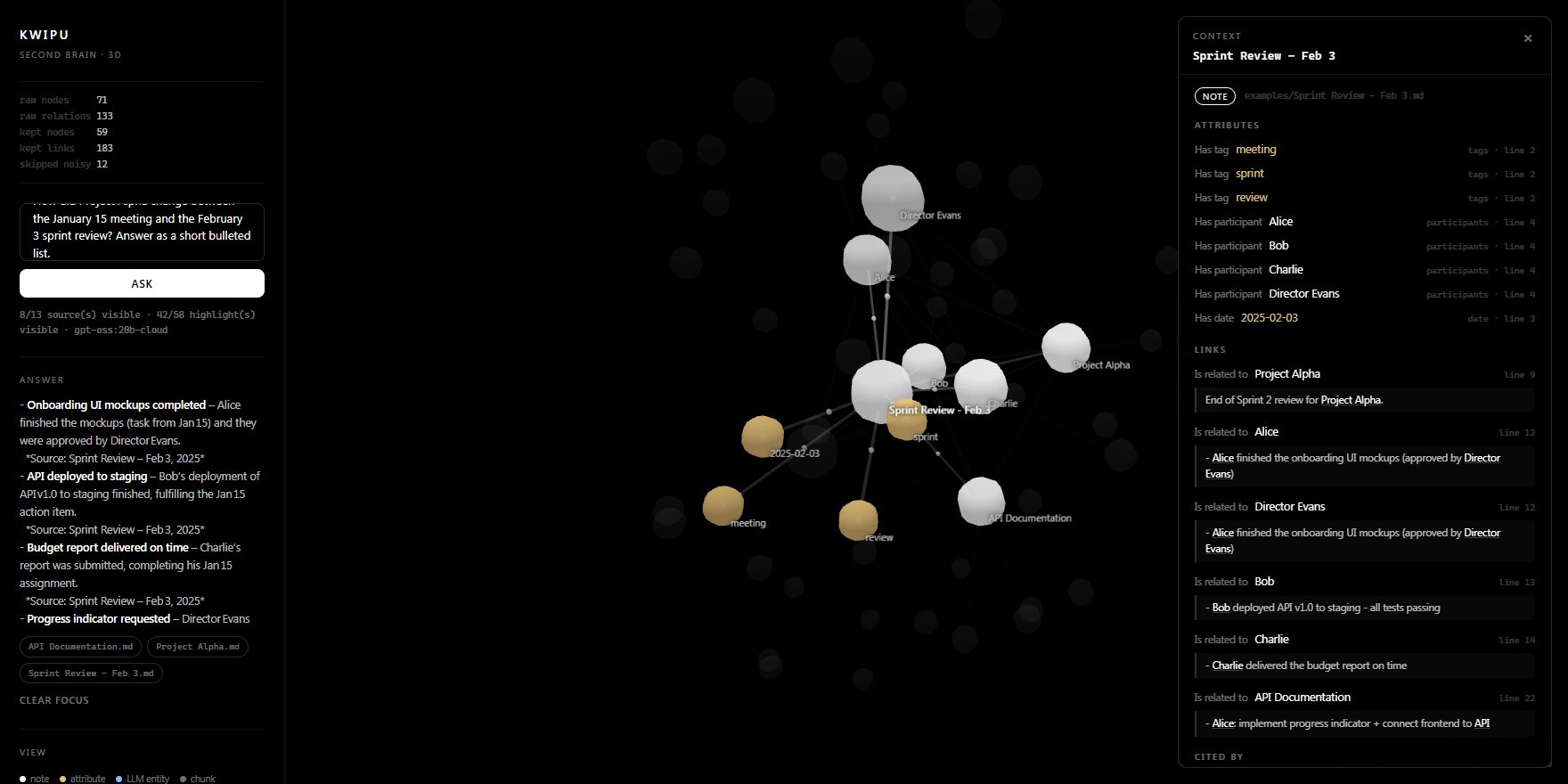

Kwipu summarizing how Project Alpha changed between two meetings, with the context card of the sprint review note — Reconstruct how a project changed across meetings and reviews.

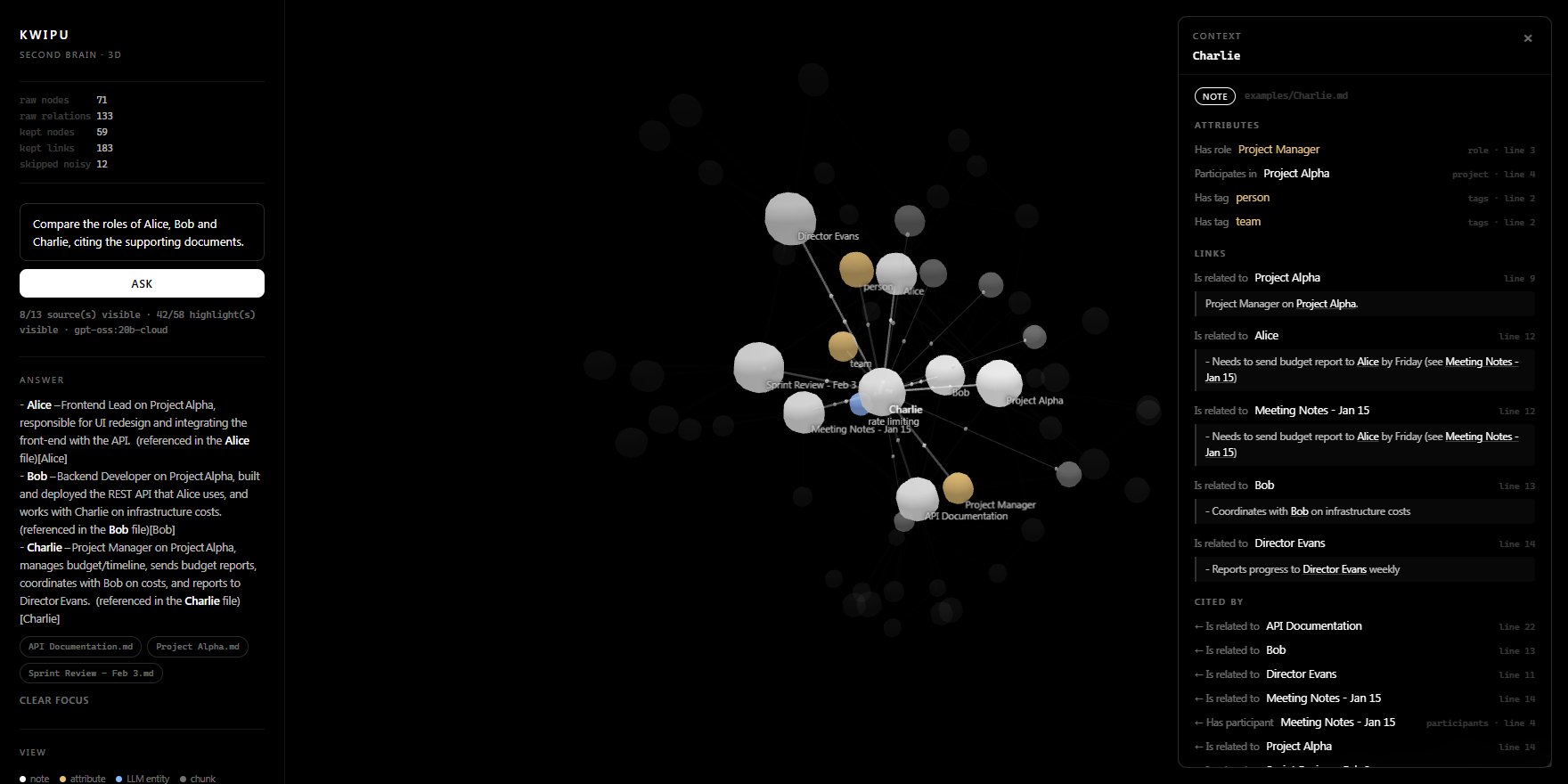

Kwipu comparing the roles of Alice, Bob and Charlie, with the context card of Charlie — Compare people, roles and the documents behind them.

Kwipu answer with the graph focused on a note and its context card — Click any node for its context: attributes, links and the line each one comes from.

Local or cloud

You decide where your notes go.

Kwipu talks to an Ollama endpoint. A local endpoint alone does not guarantee local inference: the model you choose does. Pick it before you index.

Fully local

Local Ollama model

Indexing, retrieval and answers stay on your machine when both the LLM and the embedding model run locally.

ollama pull qwen2.5:7b

Default · cloud

gpt-oss:20b-cloud

Stronger extraction with no local GPU. Document chunks, retrieved context and questions are sent to the model provider; review its policies first.

ollama pull gpt-oss:20b-cloud

Quick start

From clone to first answer in minutes.

You need Python 3.12+, Ollama and, for the web interface, Node.js. The repository ships with a small example vault to try right away.

Install

git clone https://github.com/benmaster82/Kwipu.git
cd Kwipu
py -3.12 -m venv .venv
.\.venv\Scripts\Activate.ps1
python -m pip install -r .\bridge\requirements.txt

Choose the models

ollama pull nomic-embed-text
ollama pull qwen2.5:7b                  # local, or gpt-oss:20b-cloud
$env:KWIPU_LLM_MODEL = "qwen2.5:7b"

Build the graph and ask

The first run indexes knowledge_base/, then waits for your questions and keeps watching the folder.

python .\geode_graph.py --fast
> Who works on Project Alpha, and what are their roles?

Open the 3D interface (optional)

In two more terminals with the same configuration:

python -m bridge
npm --prefix .\frontend ci
npm --prefix .\frontend run dev       # http://localhost:5173

Commands shown for Windows PowerShell. The README has the Linux and macOS equivalents and the full configuration reference.

Your notes already know the answers.
Kwipu helps you ask.

Star on GitHub Read the quick start
