C11 INFERENCE ENGINE / LFM2 · LFM2.5 · LFM3

The engine.
For local AI.

Pithos runs Liquid AI's LFM2, LFM2.5 and LFM3 GGUF models locally. Written in C11, with SIMD CPU kernels and optional OpenCL acceleration. Chat, tools, and APIs share the same engine.

Get started See the architecture ↗

Open source · Windows and Linux · No GPU required

Choose your modelVALIDATED · GGUF Q4_K_M

Download: 14.5 GB
RAM: 16 GB
With a GPU: 12–22 tok/s
CPU only: 5–8 tok/sbenchmark 11–15

24 billion parameters, about 2 billion active per token. The deepest answers; runs from disk when RAM is short.

START COMMANDWINDOWS / NATIVE

.\build\pithos.exe --server

Speeds of real generation on a laptop: Core i5-10500H, 16 GB, GTX 1650 4 GB. The benchmark repeats one short context, so the experts it needs stay in RAM. The setup guide below follows your choice.

Written in C11.Standard OS APIs. No external ML runtime.

GGUF, directly.Memory-mapped weights. Quantized compute.

CPU-first execution.SIMD kernels. Optional OpenCL acceleration.

05 — BUILD AND RUN

Build and run Pithos

You do not need to be a developer. Set aside some disk space and download time, open the right terminal, and follow one step at a time.

Before you begin

A 64-bit computerNative Windows and Linux guides. WSL2 is an optional Windows alternative.

16GB

RAM as a referenceNot a guaranteed minimum. With WSL, also check how much memory Ubuntu receives.

At least 15 GB free for the modelAbout 14.5 GB to download. Allow extra room for the compiler and, if used, Ubuntu.

Start with your CPU.
A dedicated graphics card is optional.

Model: LFM2.5-24B-A2B · change it at the top of the page

YOUR SETUP GUIDEStep 1 of 3

Ubuntu / Debian · guided setup

Need a hand? Read the full instructions ↗

01 — THE INFERENCE ENGINE

One engine. Multiple interfaces.

Pithos executes the model.
Pandora provides the chat.
Your applications use the same runtime.

The engine loads GGUF weights, processes prompts, schedules CPU and optional GPU work, and generates the next tokens. The browser chat and agents are included ways to access that runtime.

The project is designed for Liquid AI LFM2, LFM2.5 and LFM3 models. Two are validated against reference implementations: the 24B MoE reference model and the small LFM3-1.7B.

Inside the project

Direct quantized execution

Supported quantized weights are read from the mapped GGUF file. CPU quantized matrix operations use Q8_K activations instead of expanding the full model to floating point.

Memory-aware scheduling

Asynchronous read-ahead, expert prediction, and an optional VRAM expert cache help the engine work with weights larger than free RAM. Performance still depends on memory and storage.

One runtime, multiple entry points

Use the CLI, Pandora, or OpenAI-compatible HTTP endpoints. Agent tools extend those interfaces; they are not the inference engine itself.

02 — ENGINE ARCHITECTURE

How the engine works

The engine is the execution layer.
The interfaces send prompts and receive generated tokens.

Terminal / CLIPandora web chatHTTP API / applications

Prompt and generation request

MODEL / DATA

GGUF weights

Memory-mapped file.
Supported quantized formats stay in their stored representation.

Disk → system memory

PITHOSC11 INFERENCE ENGINE

CPU WORKER POOL

Model execution

Tokenization, routing, attention/convolution, and selected experts run through the CPU path.

SCALAR / AVX2 / NEON*

KV cache · convolution state · sampling · prompt reuse

GENERATED OUTPUT

Next token

Logits are sampled into the next token. Repeating the forward pass produces the response.

Tokens → interface

CPU-only execution.All model compute stays on the CPU. OS-backed paging, read-ahead, and expert prediction help with cold weights.

The model is data. The GGUF file contains the weights. Pithos is the program that executes them.

GPU offload is optional. Hybrid execution requires compatible OpenCL hardware and drivers. This diagram describes the engine, not your current hardware.

Implementation and validation differ. ARM64 NEON is implemented; the published CPU validation here is x86-64. GPU acceleration was validated on native Windows (NVIDIA, Intel, AMD), not in our WSL2 environment.

03 — TECHNICAL SPECIFICATION

Technical specifications

Read the source documentation

Engine capabilities

Implementation and runtime
Implementation	C11. Standard Win32 / POSIX APIs. No external ML runtime or build-time libraries.
Model architectures	`lfm2` dense, `lfm2moe` and `lfm3` (sliding-window and gated attention), loaded from GGUF.
CPU weight formats	Q4_K, Q5_K, Q6_K, Q8_0, Q4_0, F16, F32.
CPU kernels	Scalar fallback; runtime-selected AVX2 / FMA / F16C on x86-64. NEON implemented for ARM64.
GPU backend	Optional, runtime-loaded OpenCL, Q4_K and Q6_K weights. MoE models: hot experts and dense layers in VRAM. Dense models: every layer in VRAM.
Prompt processing	CPU batch path with expert grouping. VRAM-resident experts may still be offloaded to GPU.
Hybrid generation	GPU-resident dense decode and cached experts; CPU workers compute non-resident experts in parallel. Expert-only offload is also available.
Memory and reuse	Mapped weights, Q8_K activations for CPU quantized matmuls, asynchronous read-ahead, expert prediction, and KV/convolution checkpoints. Prompt reuse can persist to disk.
Threads / batches	Configurable worker pool. Defaults: physical-core count; 64-token prompt batch.
Context	8,192 tokens for CLI by default; 16,384 for server/agent. Configurable up to the model limit; reference documentation lists 131,072. Actual capacity depends on memory.
Interfaces	CLI, embedded Pandora UI, terminal/web agents, MCP client, and OpenAI-compatible HTTP endpoints. Inference requests share one context and are serialized.
Platforms / license	Windows native and Linux. macOS / ARM64 paths remain unverified here. Engine code: MIT.

Validated models

The reference: LFM2.5-24B-A2B, a 24B MoE
GGUF file	`LFM2.5-24B-A2B-Q4_K_M.gguf`
Parameters	Approximately 24 billion total; approximately 2 billion active per token.
Hybrid layers	40 layers: 10 attention and 30 short-convolution layers.
MoE feed-forward	38 MoE layers. Each selects 4 of 64 experts.
Quantization recipe	Q4_K_M GGUF, containing supported block types such as Q4_K and Q6_K.
Download size	14,526,258,464 bytes — about 14.5 GB / 13.5 GiB. Reserve at least 15 GB for the model alone.
RAM reference	16 GB is a reference configuration, not a universal minimum or a performance guarantee. Consider memory assigned to WSL separately.
Model license	LFM Open License v1.0. Separate from the engine MIT license; see the Liquid AI repository ↗.

Small and fast: LFM3-1.7B, dense
GGUF file	`LFM3-1.7B-Q4_K_M.gguf`
Layers	24 layers: 13 short-convolution, 6 full-attention and 5 sliding-window (256-token) attention layers.
Download size	1,099,627,808 bytes — about 1.1 GB / 1.0 GiB. Fits in 4 GB of RAM.
Speed	About 55 tokens/s with the whole model in a 4 GB GPU, about 20 on the CPU alone (laptop above).
Model license	LFM Open License v1.0; see the Liquid AI repository ↗.

VALIDATION SCOPE

CPU path verified on Ubuntu / WSL2.

Scalar/AVX2 kernel checks, reference-model inference, and server tests passed on x86-64. OpenCL GPU acceleration was not validated in that WSL2 environment.

LFM3-1.7B: tokenizer identical to Hugging Face, chat template identical to the model's own, and perplexity matching an independent PyTorch implementation (4.390 vs 4.390 with the GPU f32 kernels).

A documented context limit is not a completed full-context validation. Other model files are not interchangeable with the validated ones.

Specifications follow the project README and the model runtime. The engine and model have separate capabilities and licenses.

04 — ACCESS THE ENGINE

Choose an interface.
Keep the same engine.

Start with Pandora, or connect an application.
Every interface uses the Pithos runtime.

YOUR FIRST SESSION

Your browser becomes your chat.

After setup, start the server and open the local address. Keep the terminal open while you chat.

From the Pithos folder · Linux

./build/pithos --server --no-gpu

Then open http://127.0.0.1:8080 in your browser.

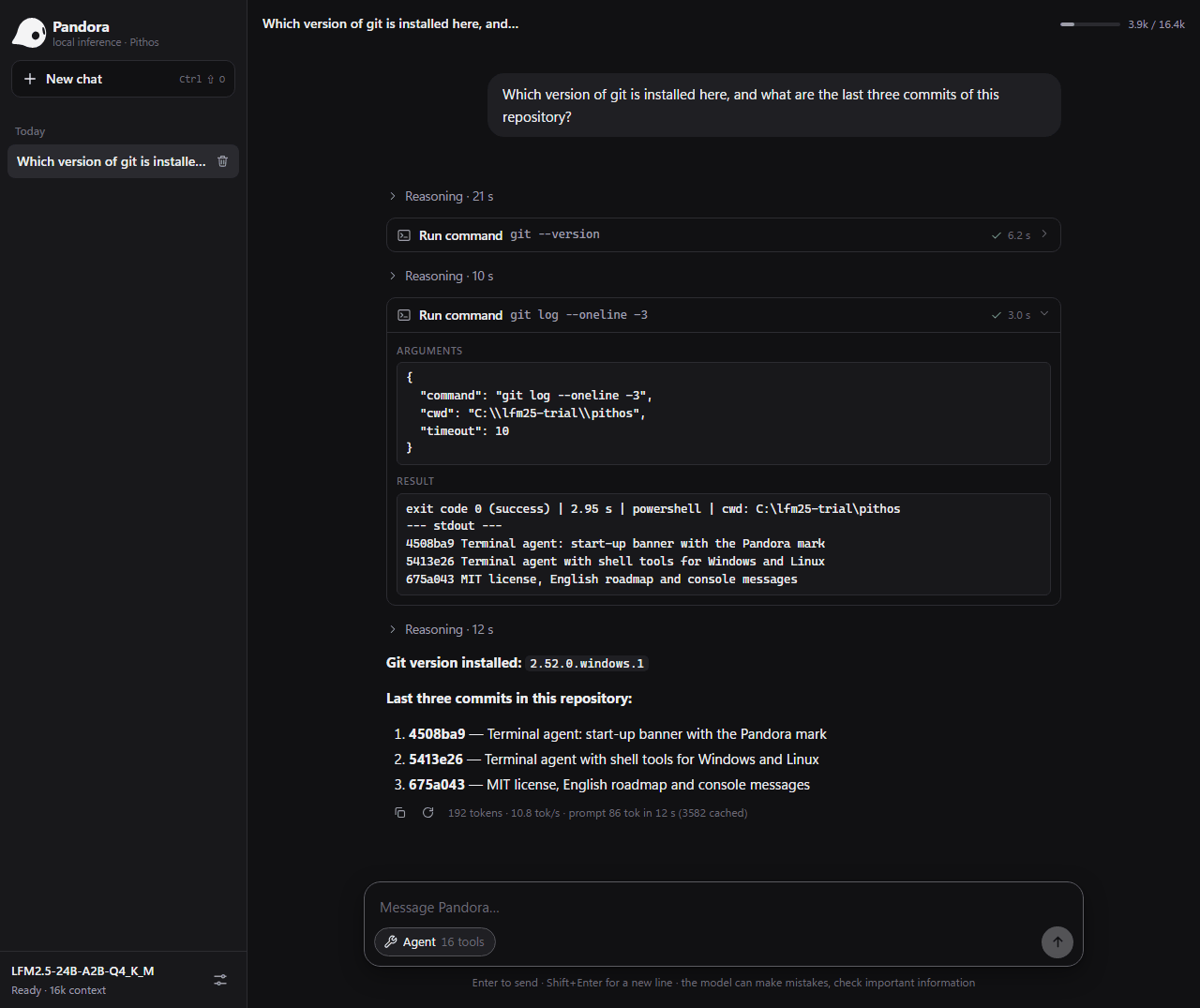

PANDORA / ACTUAL INTERFACE

Actual Pandora interface: a conversation with tools for running commands and viewing their results.

ALREADY INCLUDED

An engine.
And a place to work.

Pandora is the web interface included with Pithos. Open your conversations in the browser, and see the tools and their results when using agent mode.

Open it on your computer

For developers, Pithos also offers an OpenAI-compatible API. Read the documentation ↗

MCP servers and tools

Give your local agent access to files, commands, and external tools. Pithos is an MCP client: it connects to servers you configure and adds their tools to the agent.

Tools included with Pithos

Files and folders: list_directory, read_file, find_files, search_text, write_file
Web and utilities: web_search, fetch_url, calculator, get_current_datetime
Shell and processes: run_command, start_process, read_process, stop_process, list_processes, edit_file

Terminal agents have shell tools available. For browser agents, start Pithos with --server --shell. File tools use the working folder selected with --workspace.

Which MCP servers work?

Supported connection: Local processes using JSON-RPC over standard input/output (stdio). Start them with Node.js, Python, uvx, or another executable installed on your computer.
Configuration: Add servers to mcp.json, or pass --mcp PATH. Pithos discovers their tools and lists them as server__toolname.
Compatibility limits: Remote HTTP MCP connections are not supported. No third-party MCP server is bundled. A server must expose tools over stdio; individual integrations need their own configuration and testing.

Find integrations in the official MCP registry ?. Check the server's transport, required runtime, credentials, and installation instructions.

Try the included MCP test server

Python is required. Open a terminal in the Pithos repository folder. These commands use the example configuration already included in tests/mcp_test.json and list tools without loading the model.

Windows · PowerShell

.\build\pithos.exe --mcp tests/mcp_test.json --tools-list

Linux · terminal

./build/pithos --mcp tests/mcp_test.json --tools-list

The example launches python; change it to python3 in the JSON configuration if that is your installed command.

To use the configured server in an agent, replace --tools-list with --agent and provide your model path with -m. Use --server --shell for the browser interface. Pithos stops its MCP processes when it exits.

For application integrations, GET /v1/tools lists tools and MCP server states; POST /v1/tools/call invokes a tool. These are Pithos HTTP endpoints, not an MCP server transport.

MCP configuration and examples ?

06 — A FEW THINGS TO KNOW

Frequently asked questions

A technical project, explained without assuming you know the jargon.

Ask the community

What is the difference between Pithos and the model?+

Pithos is the program that runs the AI. The model contains the data and weights needed to generate answers. Pandora is the built-in web chat. On Linux, build.sh --download-model can build the program and download the reference model, or --download-model=lfm3-1.7b the small one.

Do I need WSL2 on Windows?+

No. Pithos builds and runs natively on Windows with build.cmd. You need a compiler: GCC from MSYS2 or MSVC from Visual Studio/Build Tools. The Windows guide uses MSYS2. Ubuntu through WSL2 is an alternative, not a requirement.

Do I need a dedicated graphics card?+

No. You can start with the CPU. A compatible GPU can speed things up, but needs suitable OpenCL hardware and drivers: LFM3-1.7B goes from about 20 to about 55 tokens per second on a 4 GB laptop GPU. Our Ubuntu/WSL2 testing covered CPU inference; GPU acceleration was not verified in that environment.

Can I chat without an Internet connection?+

Yes. Once you have downloaded the program, prerequisites, and model, you can chat locally offline. Web searches, URLs, and connected external services need Internet access and may send data to those services.

Is it free? Can I use any model?+

The Pithos code is open source under the MIT license. Model weights have a separate license, available in the Liquid AI repository. Not every GGUF file is compatible. Two are validated: LFM2.5-24B-A2B-Q4_K_M.gguf, the reference model, and the small LFM3-1.7B-Q4_K_M.gguf. On Linux, bash build.sh --list-models shows them.

How do I open the chat again tomorrow?+

Open a terminal in the Pithos folder. On Windows run .\build\pithos.exe --server --no-gpu; on Linux run ./build/pithos --server --no-gpu. With LFM3-1.7B, add -m models/LFM3-1.7B-Q4_K_M.gguf. Open http://127.0.0.1:8080 in your browser and keep the terminal open. There is no need to build or download everything again.

The download stopped. Do I have to start over?+

With the Linux script, run the same bash build.sh --download-model command again (with =lfm3-1.7b if you chose the small model). Partial data is kept and the transfer resumes when possible. The model becomes available only after size and SHA-256 checks pass. On Windows, resuming depends on your browser or download tool.

MAKE IT YOUR NEXT EXPERIMENT.

Make room for your AI.

Your first step is choosing where to begin.
